B Paper Sizes

Further Information

The area of B series sheets is the geometric mean of successive A series sheets. So, B1 is between A0 and A1 in size, with an area of 0.707 m2 ( 1⁄√2 m2). As a result, B0 is 1 metre wide, and other sizes in the B series are a half, a quarter or further fractions of a metre wide. While less common in office use, it is used for a variety of special situations. Many posters use B-series paper or a close approximation, such as 50 cm × 70 cm; B5 is a relatively common choice for books. The B series is also used for envelopes and passports. The B-series is widely used in the printing industry to describe both paper sizes and printing press sizes, including digital presses. B3 paper is used to print two US letter or A4 pages side by side using imposition; four pages would be printed on B2, eight on B1, etc.

Source: Wikipedia

Format Width x Height (mm) Width x Height (in)
B0 1000 x 1414 mm 39.4 x 55.7 in
B1 707 x 1000 mm 27.8 x 39.4 in
B1+ 720 x 1020 mm 28.3 x 40.2 in
B2 500 x 707 mm 19.7 x 27.8 in
B2+ 520 x 720 mm 20.5 x 28.3 in
B3 353 x 500 mm 13.9 x 19.7 in
B4 250 x 353 mm 9.8 x 13.9 in
B5 176 x 250 mm 6.9 x 9.8 in
B6 125 x 176 mm 4.9 x 6.9 in
B7 88 x 125 mm 3.5 x 4.9 in
B8 62 x 88 mm 2.4 x 3.5 in
B9 44 x 62 mm 1.7 x 2.4 in
B10 31 x 44 mm 1.2 x 1.7 in
B11 22 x 32 mm 0.9 x 1.3 in
B12 16 x 22 mm 0.6 x 0.9 in

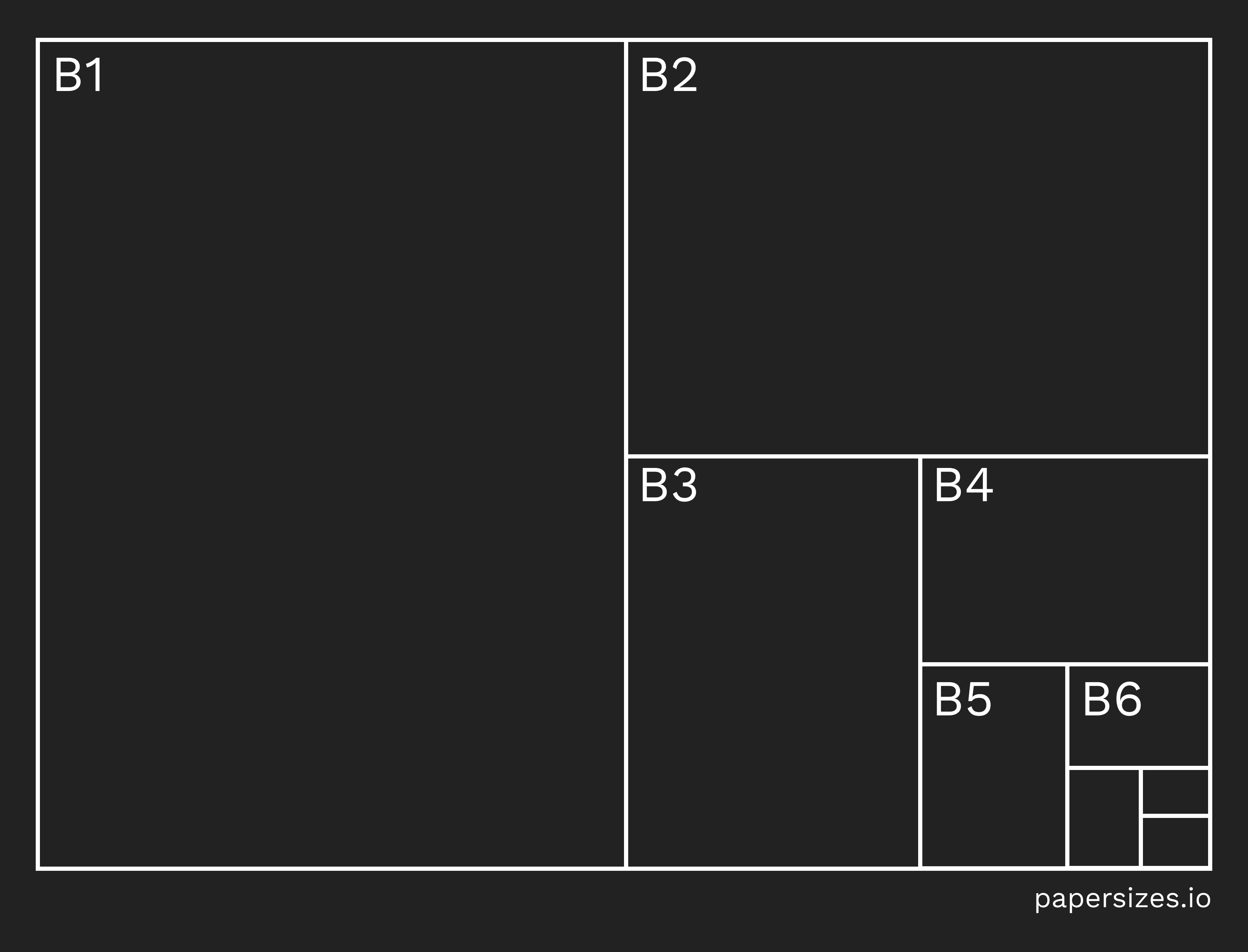

B1 B2 B3 B4 B5 B6
